Abstract: Quarter turn locks are widely used in industrial enclosures, cabinets, electrical panels, and transportation equipment due to their fast operation and reliable security. This article provides a comprehensive explanation of how a quarter turn lock works, its structural components, key advantages, selection criteria, and practical applications. It also addresses common customer concerns such as durability, compatibility, and installation efficiency, helping decision-makers choose the right solution for their specific needs.

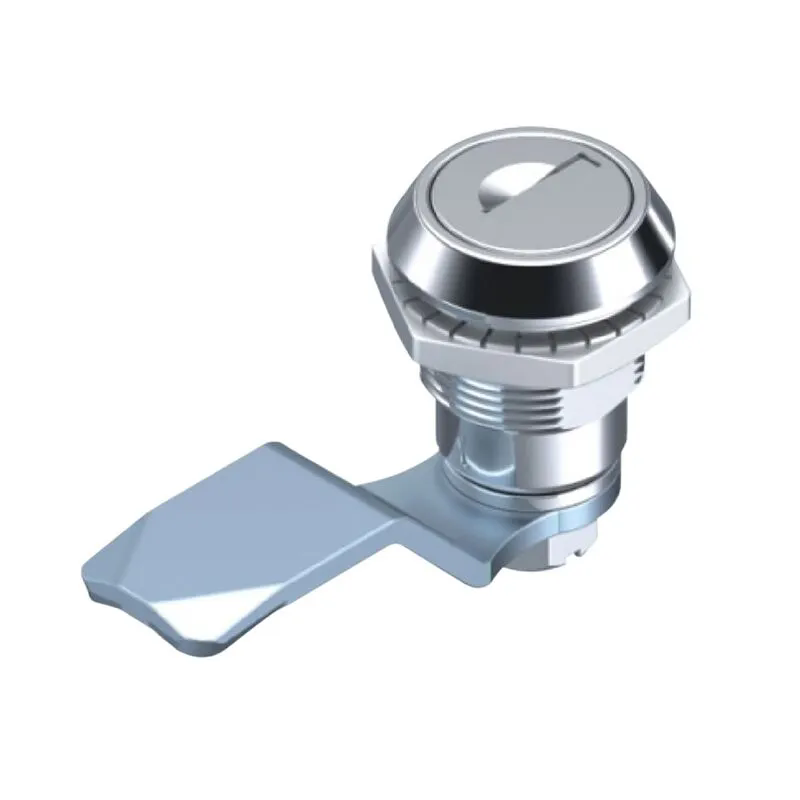

A quarter turn lock is a mechanical fastening device designed to secure panels, doors, or enclosures with a simple 90-degree rotation. Unlike traditional locking systems that require multiple turns, this mechanism provides quick access while maintaining sufficient locking strength.
The core principle is straightforward: by rotating the actuator (such as a key, knob, or handle) a quarter turn, the cam attached to the back of the lock engages or disengages with the frame, locking or unlocking the panel.
This design is particularly suitable for environments where frequent access is required without compromising safety or stability.
The operation of a quarter turn lock is based on rotational motion translated into linear clamping force. When the actuator is turned 90 degrees:
When reversed, the cam disengages, allowing the panel to open instantly.
This simple mechanism reduces operational time significantly compared to threaded fasteners or multi-turn locks. It also minimizes user effort, making it ideal for industrial and commercial applications.
A standard quarter turn lock consists of several essential parts:
| Component | Function |
|---|---|
| Housing | Encases internal components and mounts the lock |
| Actuator | The visible part used for operation (key, knob, or slot) |
| Cam | Rotating metal arm that secures the panel |
| Seal/Gasket | Provides environmental protection (dust, water) |
| Fixing Nut | Secures the lock to the panel |
Different configurations are available depending on the level of security and environmental resistance required.
Quarter turn locks offer multiple benefits that address common customer pain points:
These advantages make them a preferred solution in modern equipment design.
Quarter turn locks are widely used across multiple sectors due to their adaptability:
In these environments, quick access and secure closure are equally critical, making quarter turn locks an optimal choice.
Selecting the correct quarter turn lock requires evaluating several technical parameters:
| Factor | Consideration |
|---|---|
| Material | Choose corrosion-resistant materials for outdoor use |
| Cam Length | Must match panel thickness and frame distance |
| Lock Type | Keyed, tool-operated, or finger-operated |
| Environmental Rating | IP65/IP67 for waterproof and dustproof requirements |
| Mounting Style | Front or rear installation based on design constraints |
Customers often face issues such as improper fit or insufficient sealing. These can be avoided by carefully matching specifications to application conditions.
Cofiy provides a wide range of quarter turn lock solutions designed to meet diverse industrial requirements, ensuring both performance and reliability.
Proper installation ensures optimal performance and long-term durability:
Maintenance is minimal but important:
Following these practices reduces downtime and extends service life.
Q1: What makes a quarter turn lock different from a traditional lock?
A: A quarter turn lock operates with a 90-degree rotation, providing faster access compared to multi-turn locking systems.
Q2: Are quarter turn locks suitable for outdoor use?
A: Yes, models with sealing gaskets and corrosion-resistant materials are designed for outdoor and harsh environments.
Q3: How do I determine the correct cam size?
A: Measure the panel thickness and the distance to the frame. The cam length should ensure secure engagement without excessive pressure.
Q4: Can quarter turn locks be customized?
A: Yes, customization options include material, finish, locking mechanism, and cam configuration.
Quarter turn locks provide a practical balance between security, efficiency, and ease of use. Their simple yet effective mechanism allows for rapid access while maintaining reliable locking performance across a wide range of applications.
By understanding their working principle, structure, and selection criteria, businesses can significantly improve operational efficiency and equipment safety.
