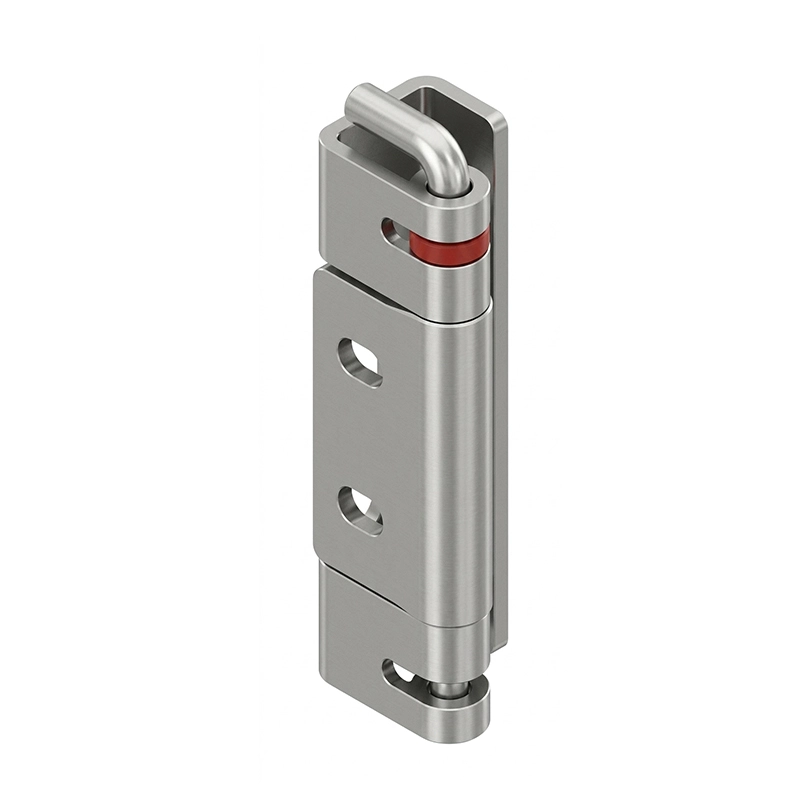

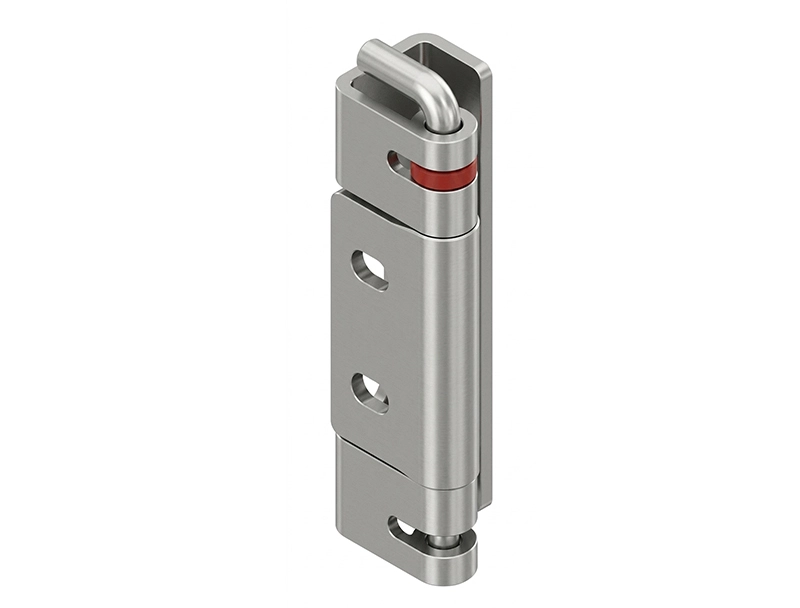

This Removable Pin Enclosure Concealed Hinge is available in two materials, carbon steel and stainless steel 304, and is installed in a concealed manner to enhance the overall aesthetics of the cabinet.
The surface of carbon steel material adopts environmentally friendly galvanizing process, which has good corrosion resistance and wear resistance. The surface of the stainless steel material has been polished, and after polishing, the hinge surface has super strong corrosion resistance and wear resistance, making it more suitable for outdoor humid environments!

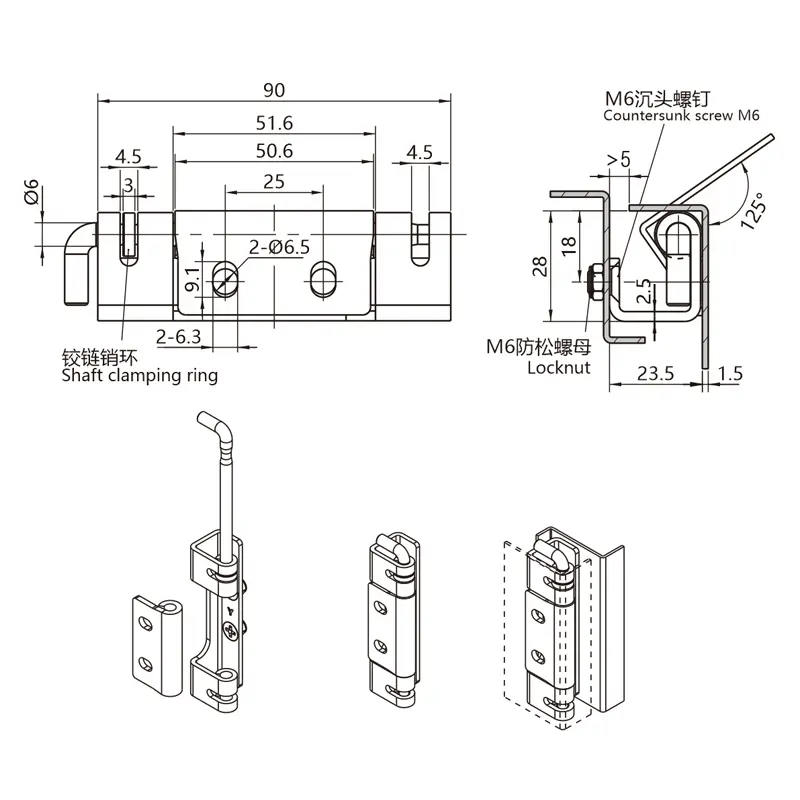

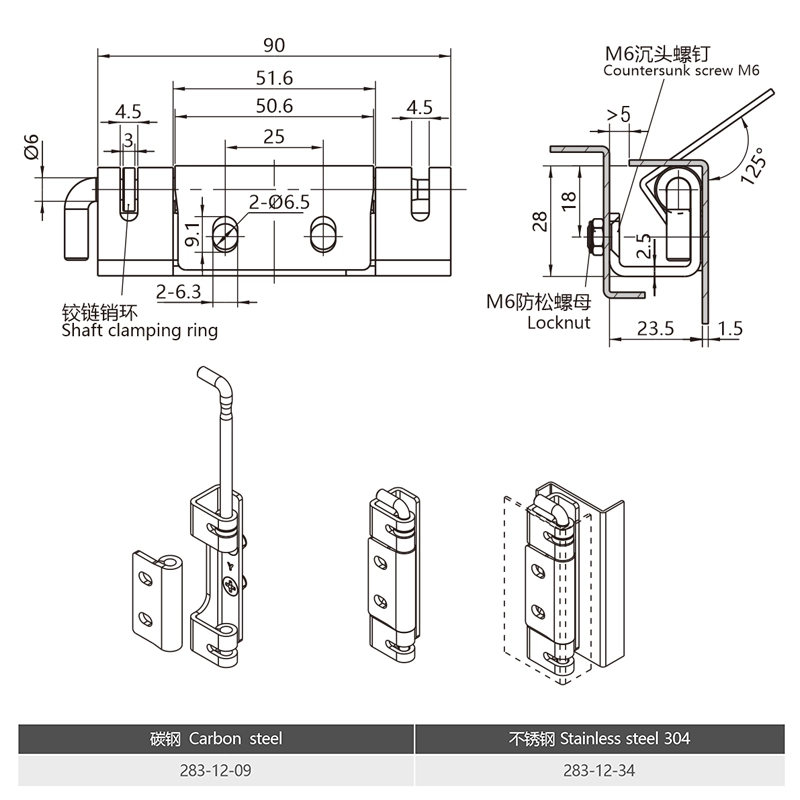

The hinge is designed with a thickness of 2.5mm and has super strong load-bearing capacity.
The hinge adopts a fiber pin design, which can quickly remove the cabinet door panel and provide equipment maintenance efficiency. It is very suitable for cabinets that are frequently opened, such as cabinets, distribution boxes, industrial equipment cabinets, etc.
The hinge mounting hole adopts a waist hole design, which facilitates customers to make subtle adjustments, reduces installation errors of door panels, and improves installation compatibility.
| Product name: | Removable Pin Enclosure Concealed Hinge |
| Material: | Stainless steel 304 or Carbon steel |
| Model: | 283-12 |
| Finish: | Zinc plated |
